SCIF

Floor & Wall Construction and Shielding Strategy

We provide complete SCIF shielding solutions that include both floor and wall systems using galvanized steel panels, radiant foil barriers, and certified adhesives, all installed to meet CTTA and ICD/ICS 705 requirements.

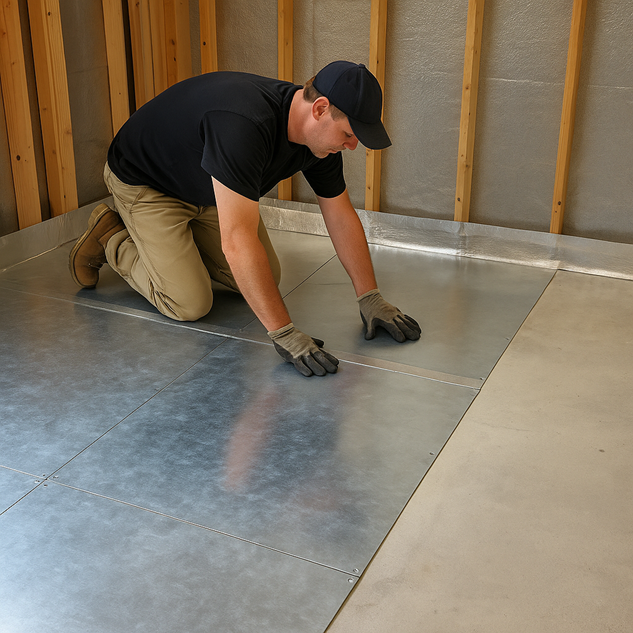

Galvanized Steel Panel Systems (Xalon GS22 / GS26)

• • RF/EMI shielded galvanized steel floor panels installed to create conductive, seamless surfaces.
• • Installed and connected with conductive foil tape (aluminum or copper) for full RF integrity.
• • Panels may be installed in double layers to eliminate visible tape seams and prevent tape from getting damaged.

Wall Shielding Solutions

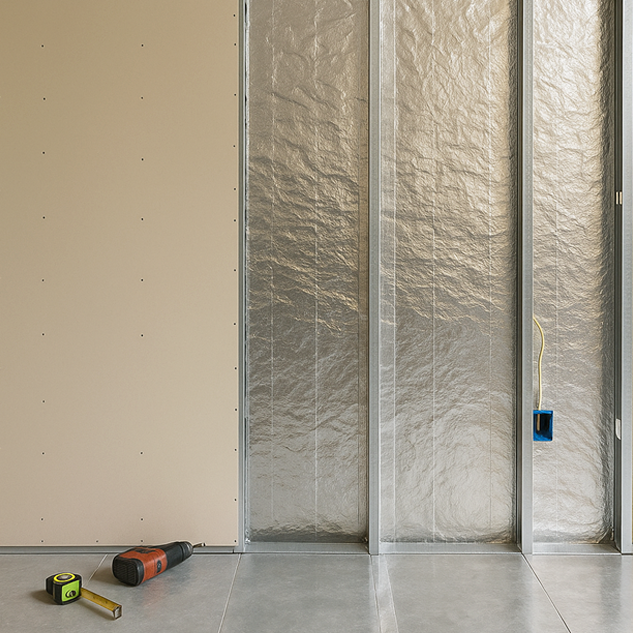

Foil-Backed Barrier Installation

• • Radiant barrier foil (e.g., Ultra NT) is placed between plywood and gypsum board on interior-facing SCIF walls.
• • All seams are overlapped and sealed with conductive foil tape to ensure continuous shielding.
• • Grounding at edges connects wall shielding to adjacent floor and ceiling panels, forming a complete Faraday cage.

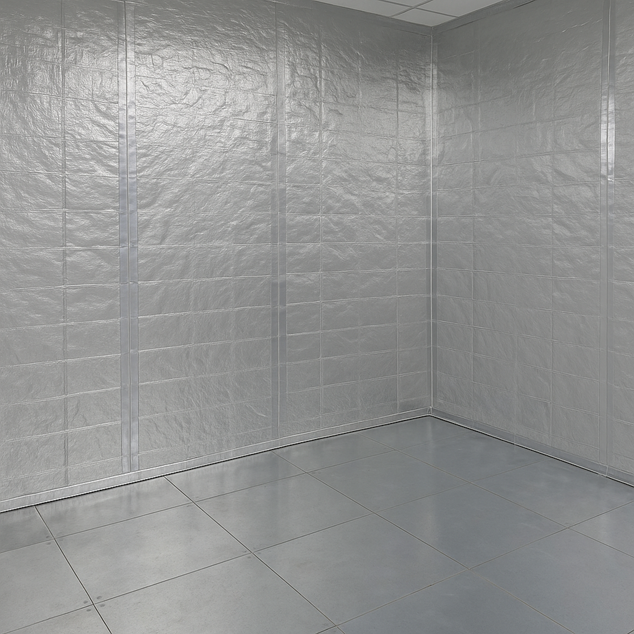

Modular Shield Panels (Xalon X-Series)

• • Prefabricated RF wall panels wrapped in aluminum foil, engineered to deliver high attenuation (80–90 dB).
• • Installed between studs or over substrates with seams sealed using conductive tape.
• • Meet UL fire ratings and ICD/ICS shielding specifications.

Installation Standards

• • All systems installed per Certified TEMPEST Technical Authority (CTTA) guidance.
• • Verified photo documentation provided for compliance and accreditation support.
• • Installed exclusively by cleared personnel to meet DoD secure access requirements.

Alternative: Radiant Barrier Methods (e.g., Ultra-NT Barrier)

• Another method employs a foil-backed radiant barrier (e.g., Ultra NT) installed over the floor using construction adhesive (e.g., 3M Super 77) or spray adhesives.
• Overlap seams by at least 6″ and seal all joints with aluminum foil tape.
• Prepare, align, press, and roll the material into place. Seal edges with conductive tape or caulk.
• Once installed, the radiant barrier can be overlaid with standard finish materials like carpet or vinyl.

Final Notes & Best Practices

• The choice between steel panel systems vs. radiant barrier depends on security requirements, budget, load carrier needs, and facility design.
• All installations must align with architectural specifications and SCIF accreditation standards—covering RF shielding, acoustic, and physical security requirements.
• Only cleared contractors and construction personnel may perform installation and finish work in SCIFs, as prescribed by UFC guidelines.
